Toyota Hilux Prado 1KZ-TE 3.0L VRS Head Gasket Kit with TTY Head Bolts
Toyota HiAce, Hilux, and Prado 1KZ-TE VRS gasket set, including an MLS head gasket and TTY bolts.
Toyota Hilux/Prado 1KZ-TE 3.0L VRS MLS Cylinder Head Gasket Set
Toyota HiAce, Hilux, and Prado 1KZ-TE 3.0L Torque-to-Yield Cylinder Head Bolts

1KZ-TE 3.0L MLS VRS Head Gasket Set & Bolt Kit – Hilux, Prado & Surf

$191.80
SKU: ETP-VRSBHK1KZTEN

Complete top-end VRS head gasket set and torque-to-yield head bolt kit engineered for the 3.0L 1KZ-TE turbo diesel engine in Toyota Hilux, LandCruiser Prado, and Hilux Surf models. Supplied from Australian stock with the thickest-specification multi-layer steel (MLS) head gasket, valve stem and injector seals, and a torque tightening sequence sheet, backed by a 12-month unlimited-kilometre warranty.

Vehicle & Engine Compatibility — 1KZ-TE 3.0L Turbo Diesel

  • Toyota Hilux: KZN165 Series (1999–2005) & KZN185 Series (1995–2000)
  • Toyota LandCruiser Prado: KZJ95 Series (1996–2003) & KZJ120 Series (2003–2006)
  • Toyota Hilux Surf: KZN130 Series
  • Engine Code: 1KZ-TE 3.0L 8-Valve SOHC Turbo Diesel only

Exclusions: Does not fit later 1KD-FTV 3.0L D4D common-rail diesel engines.

Package Contents

  • Thickest-Spec MLS Head Gasket: Multi-layer steel gasket engineered for reliable high-compression diesel sealing
  • Full VRS Top-End Gasket Kit: Rocker cover gasket, intake/exhaust manifold gaskets, and auxiliary seals
  • Stem & Injector Seals: Complete set of replacement valve stem seals and diesel injector seals

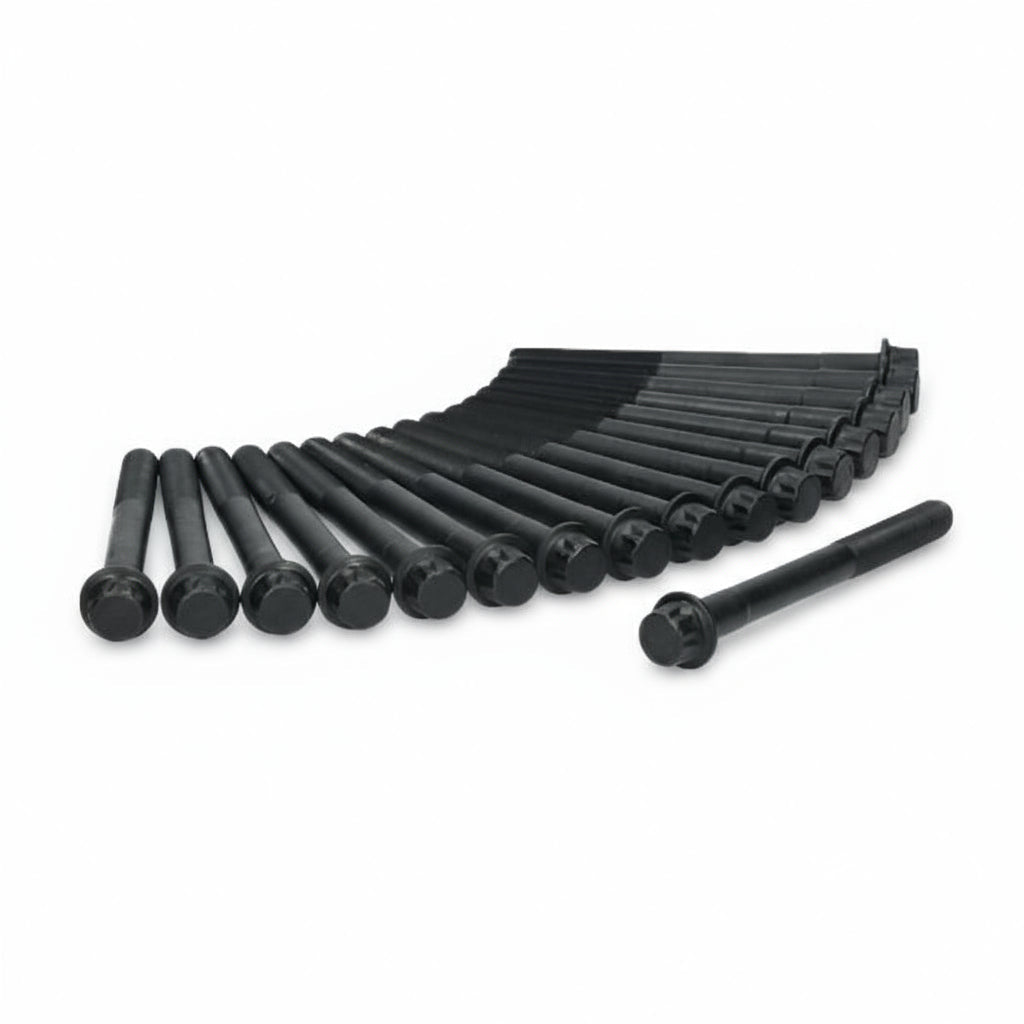

  • Torque-to-Yield (TTY) Head Bolt Set: Complete set of new single-use cylinder head bolts (never reuse old TTY bolts)
  • Installation Data: Torque specifications and tightening sequence guide included

Quality & Dispatch Standards

  • Everything needed for a complete 1KZ-TE top-end head gasket replacement in one kit
  • Held in Australian stock for rapid dispatch and covered by a 12-month, unlimited-kilometre warranty

Questions about fitment? Call John on 0406 611 288 for direct technical assistance.

Need the complete cylinder head too? → View 1KZ-TE 3.0L Complete Cylinder Head Kit
