Mitsubishi Triton/Pajero Sport N15 MIVEC assembled cylinder head with VRS gasket set and bolts

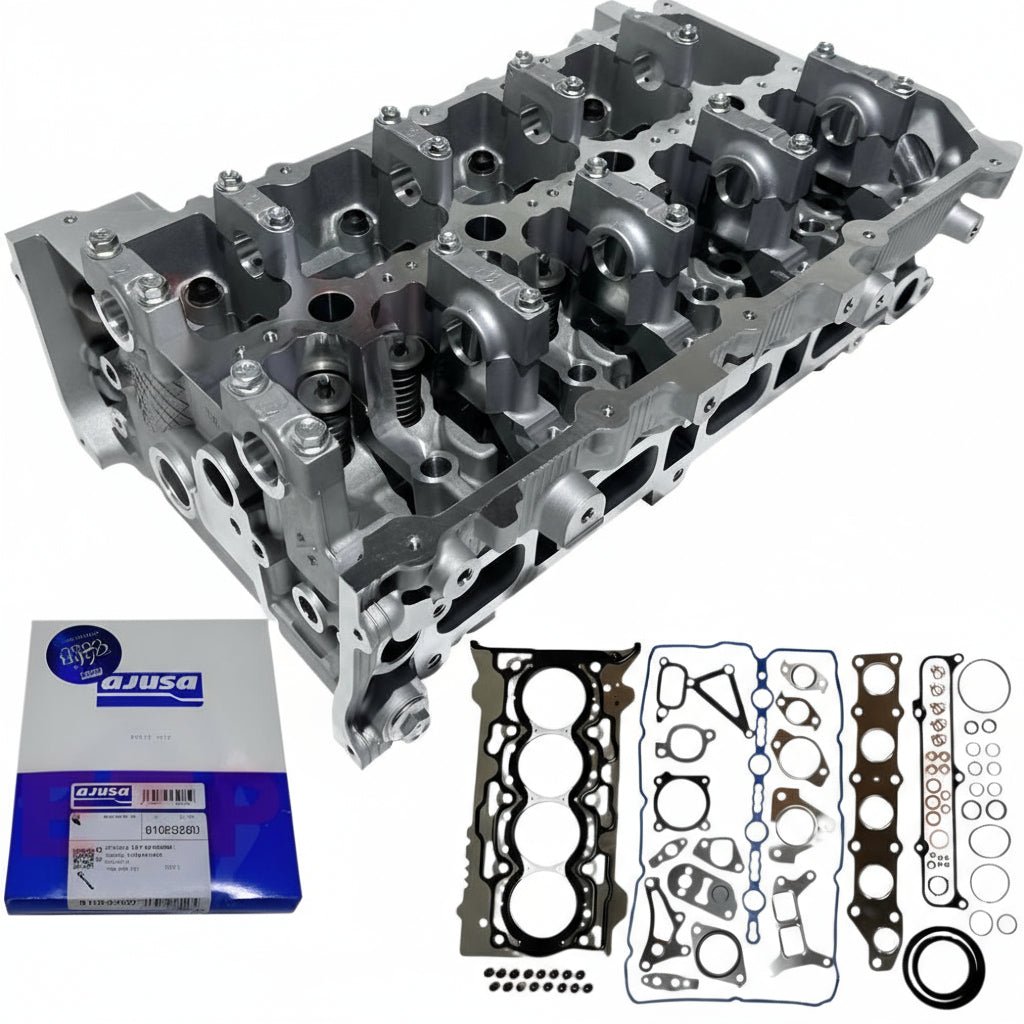

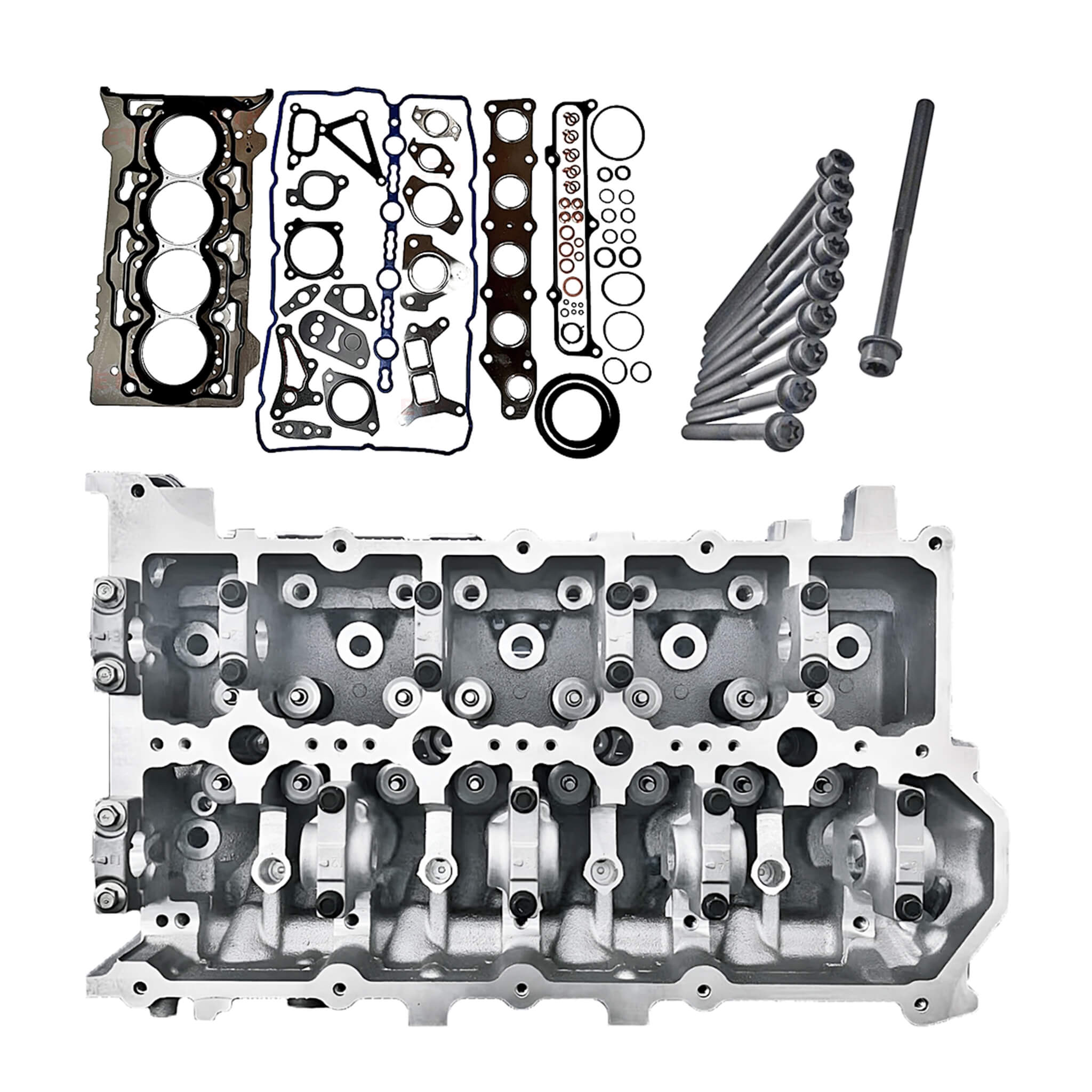

Mitsubishi Triton/Pajero Sport 4N15 MIVEC Assembled Cylinder Head with VRS Gasket Set and TTY Bolts

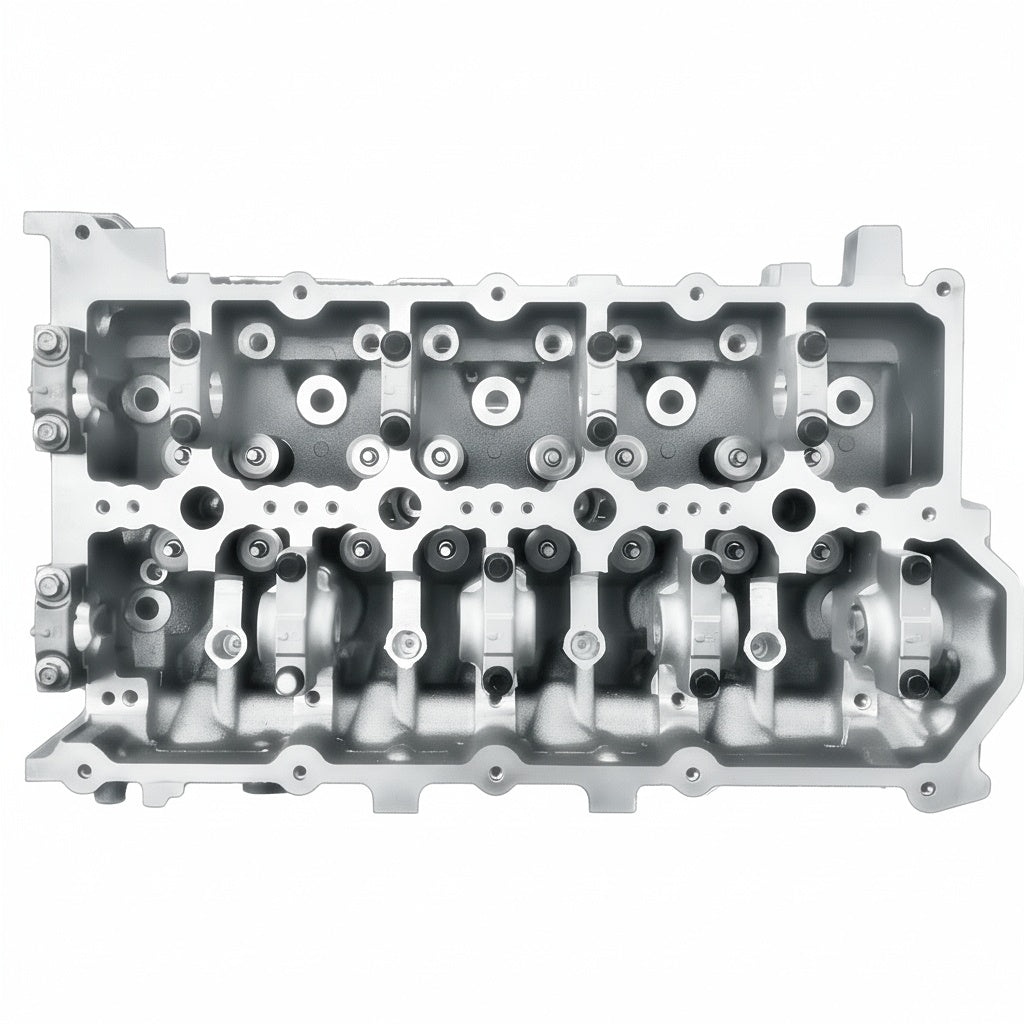

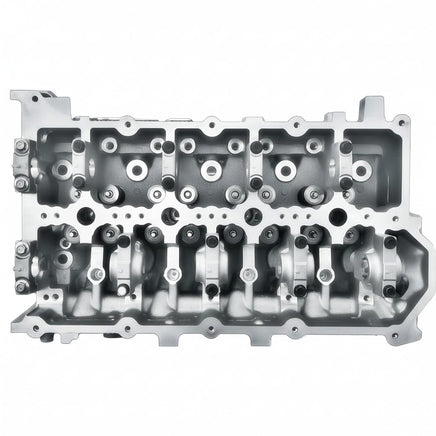

Mitsubishi Triton Pajero Sport - 4N15 Assembled Cylinder Head

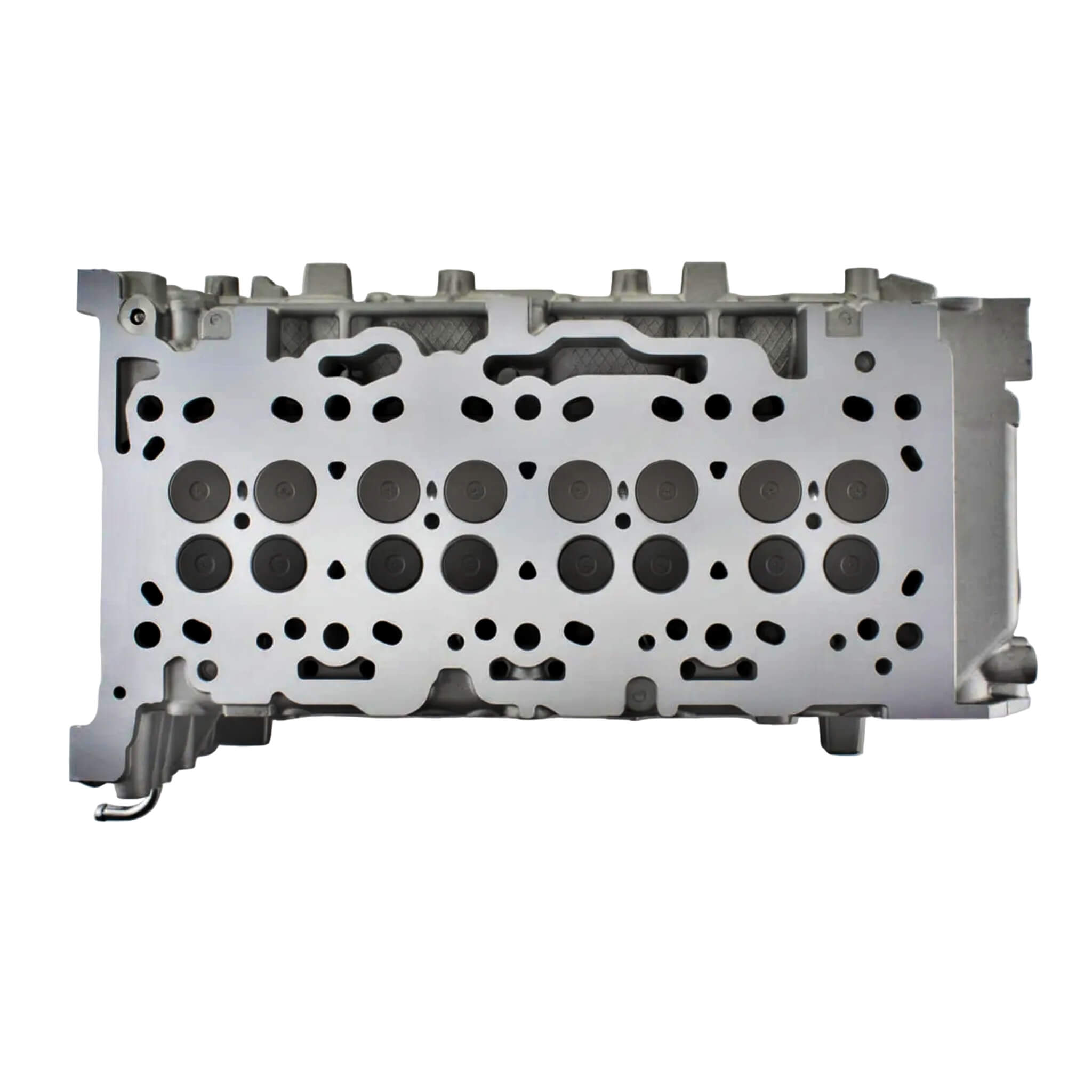

Mitsubishi Triton Pajero Sport 4N15 Assembled Cylinder Head Face View

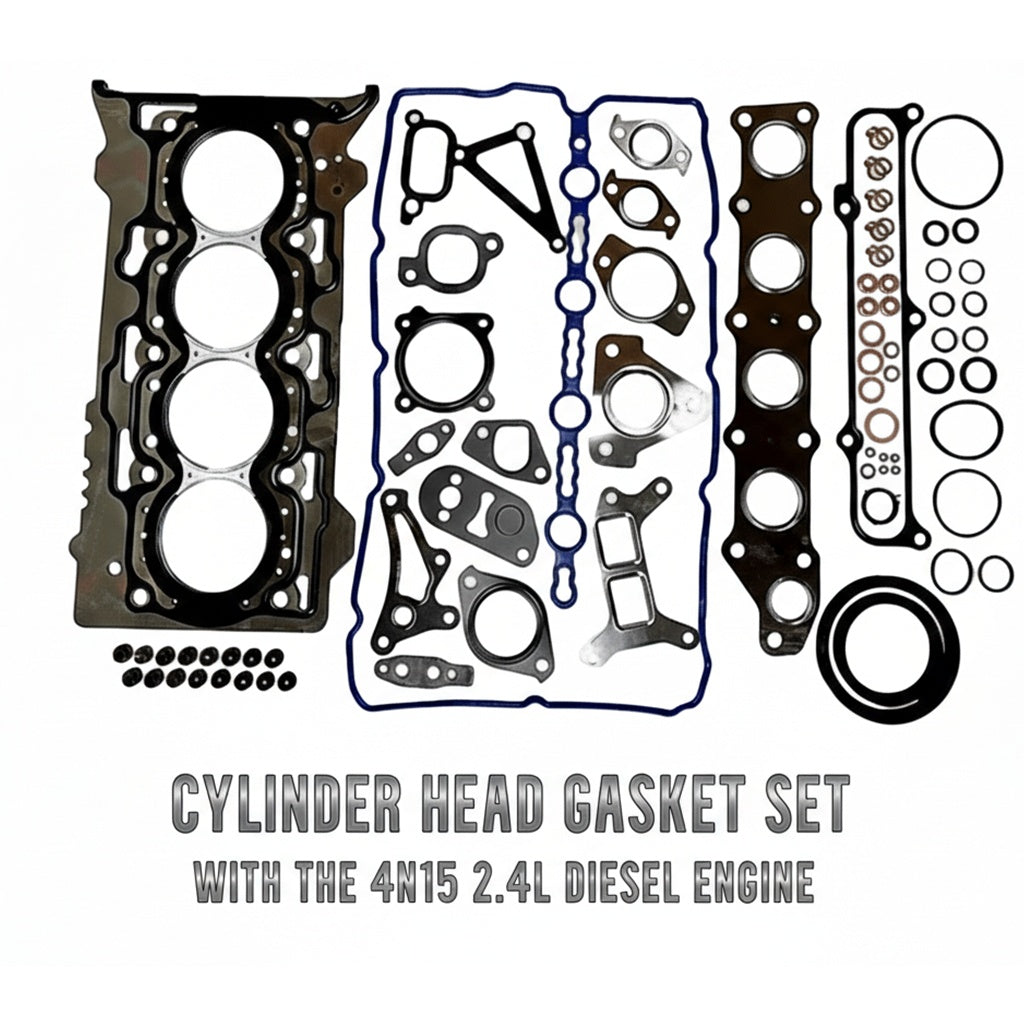

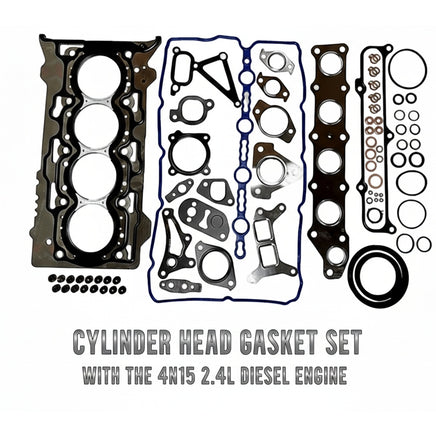

Mitsubishi Triton & Pajero Sport 4N15 Head Gasket Set With Text
Pajero and Triton with 4N15 diesel engine Cylinder head bolt set

4N15 2.4L Assembled Cylinder Head + MLS VRS & Bolt Kit – Triton MQ MR & Pajero Sport

$1,920.00
SKU: ETP-AKCH4N15N

Complete top-end assembled cylinder head replacement package engineered for the 2.4L 4N15 MIVEC turbo diesel engine in Mitsubishi Triton MQ/MR and Pajero Sport QE/QF models. Professionally assembled in Australia with valves and springs pre-installed and upgraded with reinforced injector ports, this kit ships with a full VRS gasket set, thickest-grade MLS head gasket, and new torque-to-yield head bolts.

Important Installation Note: Camshafts and rocker gear are not supplied—please transfer your existing camshafts and rocker assembly onto the new head. Because the 4N15 uses hydraulic lash adjusters, no manual valve clearance adjustment is required.

Vehicle & Engine Compatibility — 4N15 2.4L Turbo Diesel

  • Mitsubishi Triton: MQ Series (2015–2019) & MR Series (2019–2024)
  • Mitsubishi Pajero Sport: QE Series (2016–2019) & QF Series (2019–2024)
  • Engine Code: 4N15 2.4L 16-Valve MIVEC Turbo Diesel

Package Contents

  • Assembled Cylinder Head Casting: Brand-new casting fitted with valves, valve springs, retainers, and reinforced injector ports
  • Thickest-Grade MLS Head Gasket: Multi-layer steel gasket engineered for high-compression common-rail diesel sealing
  • Full VRS Top-End Gasket Kit: Rocker cover gasket, intake/exhaust manifold gaskets, and auxiliary seals
  • Torque-to-Yield (TTY) Head Bolt Set: Complete set of new single-use cylinder head bolts (never reuse old TTY bolts)

Australian Assembly & Testing Standards

  • Assembled locally in Australia by experienced engine technicians
  • Individually valve-to-seat compression tested prior to dispatch
  • Deck surface precision-checked and refaced to factory flatness tolerances where required
  • Covered by a comprehensive 12-month warranty

Questions about fitment? Call John on 0406 611 288 for direct technical assistance.

Only need the gasket set? → View 4N15 2.4L VRS Gasket Set
